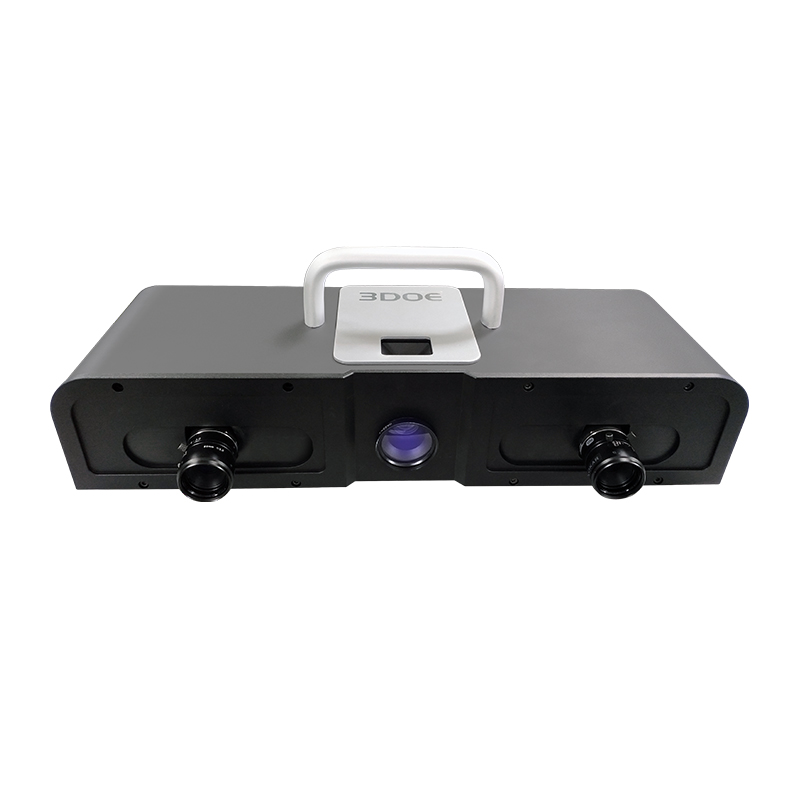

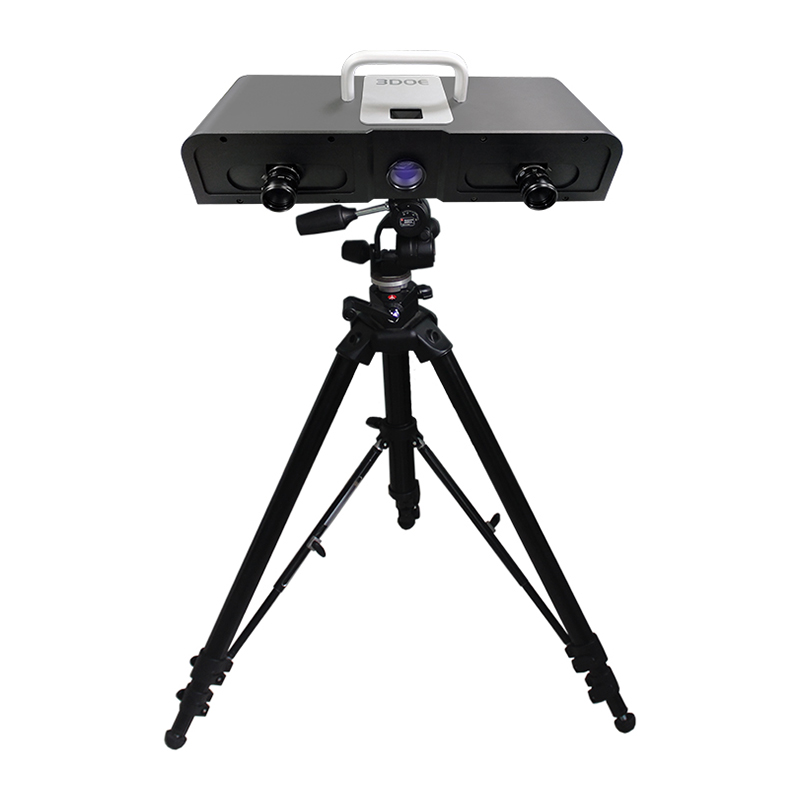

PTS-E series (binocular) photographing blue light 3D scanner

所属分类:

产品型号:PTS-E300，PTS-E500

The PTS-E series adopts advanced blue light raster scanning technology, equipped with the company's independently developed control chip and high-precision industrial camera, which can meet various high-precision three-dimensional measurement needs. Photographic 3D Scanner——Measurement Principle The Jingyixun 3D measuring head consists of two high-resolution industrial CCD cameras on the left and right and a grating projection unit. The structured light measurement method is used to combine a group of phase information with the grating projection unit. The grating fringe is projected onto the surface of the object to be measured, and the left and right cameras measure simultaneously. Combining computer vision technology, photoelectric sensing technology, image processing technology and software control technology can obtain high-density three-dimensional data on the surface of the object in a very short time. . The rotating object or scanning head is used to change the scanning angle of view. Based on the automatic splicing technology of multi-view point cloud, it can complete 360° scanning of the object in all directions.
